ask:
Create a reactive 3D mesh.
Use p5.js and WebGL. Use the version of vertex() that includes the z parameter. Use both position and color attributes. Make your mesh react to user input. This can be using the mouse, keyboard, microphone, or any other input you can think of.
thought:
every enclosed body is a mesh, with vertices inside. shape is affected by the topology.
an enclosed body can be thought of as a group of similar colours.
output:
i tried programming something very complex, and it got too complicated.
//untitled; arjun; jan, 2026.
/*
ask:
make a reactive mesh, with vertices that use the z-parameter. use position & colour.
*/
/*
thought:
every enclosed body is a mesh, with vertices inside. shape is affected by the topology.
an enclosed body can be thought of as a group of similar colours.
*/
let cam;
let vertices = [];
let col_similarity_threshold = 50;
function setup() {
cam = createCapture(VIDEO, canv_to_asp);
cam.hide();
}
//helper to convert canvas to aspect ratio. runs once.
function canv_to_asp() {
let asp_ratio = cam.height / cam.width;
let wh = windowWidth * asp_ratio;
createCanvas(windowWidth, wh, WEBGL);
}
function draw() {
background(0);
push();
//first flip
scale(-1, 1);
translate(-width, 0);
translate(width / 2, -height / 2); //bring back to the center.
assign_vertices();
image(cam, 0, 0, width, height);
pop();
}
let groups = [];
function assign_vertices() {
cam.loadPixels();
//now we get a cam.pixels array with rgba values for each pixel.
/*
algorithm:
- we go through every single x, y position on the screen.
- for each pixel, look at its neighbours (8).
- if the colour of the neighbour is similar (under a certain threshold), accumulate them into an object.
- if the neighbour has been accumulated, don't look at it again.
*/
for (let x = 0; x < cam.width; x++) {
for (let y = 0; y < cam.height; y++) {
//we go through every single pixel.
let n = get_pixel_index(x, y);
//find neighbours in the pixel array:
let neighbours = get_neighbours(x, y);
//the above returns index values in cam.pixels array with neighbours.
// for each neighbour, see if the rgba is under the threshold. if so, accumulate them into a group.
for (let i = 0; i < neighbours.length; i++) {
let ni = neighbours[i];
// red
if (cam.pixels[ni] < cam.pixels[n] - col_similarity_threshold) continue;
if (cam.pixels[ni] > cam.pixels[n] + col_similarity_threshold) continue;
// green
if (cam.pixels[ni + 1] < cam.pixels[n + 1] - col_similarity_threshold) continue;
if (cam.pixels[ni + 1] > cam.pixels[n + 1] + col_similarity_threshold) continue;
// blue
if (cam.pixels[ni + 2] < cam.pixels[n + 2] - col_similarity_threshold) continue;
if (cam.pixels[ni + 2] > cam.pixels[n + 2] + col_similarity_threshold) continue;
// neighbour is similar
groups.push(ni);
}
}
}
}
//helper to convert x,y coordinates to pixels index.
function get_pixel_index(x, y) {
return (y * cam.width + x) * 4;
}
function get_neighbours(x, y) {
let neighbours = [];
const possible_neighbours = [
[x - 1, y - 1], // top-left
[x, y - 1], // top
[x + 1, y - 1], // top-right
[x - 1, y], // left
[x + 1, y], // right
[x - 1, y + 1], // bottom-left
[x, y + 1], // bottom
[x + 1, y + 1], // bottom-right
];
for (const [dx, dy] of possible_neighbours) {
if (dx >= 0 && dx < cam.width && dy >= 0 && dy < cam.height) {
neighbours.push(get_pixel_index(dx, dy));
}
}
return neighbours;
}i decided to break it down into smaller chunks.
when i did that, i realized that the computer was not able to convert all of the pixels and then render them as vertices.
i tried a bunch of approaches that failed. the algorithm was too complex for me to work out.
then i did some gpt stuff which got it working, but i didn’t understand what the hell was going on. i tried asking it to explain me, but i didn’t get it.
so i decided to write it from scratch.
learnt about using abs for comparison.
// we use abs to get rid of writing if > and if <. abs maps it to a number line.
if (abs(neighbour_hue - studied_hue) < similarity_threshold) {made this:
//untitled; arjun; month, 2026.
/*
ask:
make a reactive mesh, with vertices that use the z-parameter. use position & colour.
*/
/*
thought:
*/
let cam;
let pixelation = 3;
let similarity_threshold = 10;
function setup() {
cam = createCapture(VIDEO, { flipped: true }, make_canvas);
pixelDensity(1);
cam.hide();
}
//make canvas the same size as camera for easier calculations.
function make_canvas() {
createCanvas(cam.width, cam.height, WEBGL);
}
function draw() {
background(0);
// push();
// translate(-width / 2, -height / 2);
// //webgl renders canvas from the center of the screen; so.
// image(cam, 0, 0, width, height);
// pop();
if (frameCount % 1 == 0) {
make_groups();
}
draw_groups();
}
//this function will read all colour values, cluster similar colours together into a group.
// we keep two variables:
let groups = []; //stores data in the format: groups[id][indices], where id increments sequentially, and indices is a list of all cam.pixels indices that belong to the group.
let pixel_to_group; //this stores data in this format: studied_index: groupid. we use this to check if the pixel being studied has been grouped or not.
function make_groups() {
cam.loadPixels();
//^ returns a cam.pixels array with rgba information.
// reset every frame
groups = [];
pixel_to_group = {};
// go through every single pixel and compare its colour value with its neighbour.
for (let x = 0; x < cam.width; x += pixelation) {
for (let y = 0; y < cam.height; y += pixelation) {
// this is the studied pixel. we get its values first.
let studied_index = get_pixel_index(x, y);
let studied_rgba = color(cam.pixels[studied_index], cam.pixels[studied_index + 1], cam.pixels[studied_index + 2], cam.pixels[studied_index + 3]);
let studied_hue = Math.floor(hue(studied_rgba));
// now we have the hue of the pixel being looked at. we now want to compare it to its neighbours.
let neighbours = get_neighbours(x, y);
// ^ returns an array of indices for cam.pixels.
// this will store the group id if we find a matching neighbour.
let found_group = null;
// now we compare the studied hue to neighbour_hue.
for (let i = 0; i < neighbours.length; i++) {
let neighbour_index = neighbours[i];
// we see if the neighbour has been grouped before. if not, we skip through this neighbour business, so that the current pixel can get its own group.
if (pixel_to_group[neighbour_index] === undefined) {
continue;
}
// a group near the neighbour being studied exists, which means we can group it to that group.
//get its colour. we compare hue.
let neighbour_rgba = color(cam.pixels[neighbour_index], cam.pixels[neighbour_index + 1], cam.pixels[neighbour_index + 2], cam.pixels[neighbour_index + 3]);
let neighbour_hue = Math.floor(hue(neighbour_rgba));
// we use abs to get rid of writing if > and if <. abs maps it to a number line.
if (abs(neighbour_hue - studied_hue) < similarity_threshold) {
// this is a valid colour to be grouped.
found_group = pixel_to_group[neighbour_index];
break;
}
}
// if no neighbour matched, create a new group
if (found_group === null) {
let new_group_id = groups.length;
groups.push([studied_index]);
pixel_to_group[studied_index] = new_group_id;
}
// otherwise, add this pixel to an existing group, if found.
else {
groups[found_group].push(studied_index);
pixel_to_group[studied_index] = found_group;
}
}
}
}
//this one tries to take some dynamic decisions to make either a triangle or triangle strip topology.
// function draw_groups() {
// push();
// // since webgl draws from the center of the screen:
// translate(-width / 2, -height / 2);
// colorMode(RGB, 255);
// noFill();
// // we want to draw a mesh for every single group.
// for (let n = 0; n < groups.length; n++) {
// if (groups[n].length < 3) continue; //skip these groups, because they're too small to be a mesh.
// // now we decide the topology.
// //if it is divisible by 3, we form a triangle-strip.
// if (groups[n].length % 3 === 0) {
// beginShape(TRIANGLES);
// for (let i = 0; i < groups[n].length; i++) {
// let index = groups[n][i];
// let { x, y } = index_to_xy(index);
// // z keeps shifting.
// let r = cam.pixels[index];
// let g = cam.pixels[index + 1];
// let b = cam.pixels[index + 2];
// let osci = sin(frameCount * 0.05);
// const z_depth = width;
// let t = frameCount * 0.0005;
// let z = map(noise(i * 0.1, t), 0, 1, 0, z_depth);
// // stroke(r, g, b);
// // strokeWeight(pixelation);
// // point(x, y, 1);
// noStroke();
// fill (r,g,b);
// vertex(x, y, z);
// }
// endShape();
// } else {
// beginShape(TRIANGLE_STRIP);
// for (let i = 0; i < groups[n].length; i++) {
// let index = groups[n][i];
// let { x, y } = index_to_xy(index);
// let r = cam.pixels[index];
// let g = cam.pixels[index + 1];
// let b = cam.pixels[index + 2];
// const z_depth = width;
// let t = frameCount * 0.0005;
// let z = map(noise(i * 0.01, t), 0, 1, 0, z_depth);
// noStroke();
// fill(r, g, b);
// vertex(x, y, z);
// }
// endShape();
// }
// }
// pop();
// }
function draw_groups() {
push();
// since webgl draws from the center of the screen:
translate(-width / 2, -height / 2);
colorMode(RGB, 255);
noFill();
// we want to draw a mesh for every single group.
for (let n = 0; n < groups.length; n++) {
if (groups[n].length < 4) continue; //skip these groups, because they're too small to be a mesh.
beginShape(QUAD_STRIP);
for (let i = 0; i < groups[n].length; i++) {
let index = groups[n][i];
let { x, y } = index_to_xy(index);
// z keeps shifting.
let r = cam.pixels[index];
let g = cam.pixels[index + 1];
let b = cam.pixels[index + 2];
let osci = sin(frameCount * 0.05);
const z_depth = width;
let t = frameCount * 0.0005;
let z = map(noise(i * 0.1, t), 0, 1, 0, z_depth);
// stroke(r, g, b);
// strokeWeight(pixelation);
// point(x, y, 1);
noStroke();
fill(r, g, b);
vertex(x, y, z);
}
endShape();
}
}
/* helpers: */
//helper written by an llm to fetch neighbours for a given pixel, taking in mind the pixelation value.
function get_neighbours(x, y) {
let neighbours = [];
// Check all 8 surrounding positions (or fewer at edges)
for (let dx = -pixelation; dx <= pixelation; dx += pixelation) {
for (let dy = -pixelation; dy <= pixelation; dy += pixelation) {
// Skip the center pixel itself
if (dx === 0 && dy === 0) continue;
let nx = x + dx;
let ny = y + dy;
// Check bounds
if (nx >= 0 && nx < cam.width && ny >= 0 && ny < cam.height) {
let index = get_pixel_index(nx, ny);
neighbours.push(index); // just return the index of the neighbours.
// {
// x: nx,
// y: ny,
// index: index,
// color: {
// r: cam.pixels[index],
// g: cam.pixels[index + 1],
// b: cam.pixels[index + 2],
// a: cam.pixels[index + 3],
// },
// });
}
}
}
return neighbours;
}
//helper to convert x,y coordinates to pixels index.
function get_pixel_index(x, y) {
return (y * cam.width + x) * 4;
}
//helper to convert index to coordinates.
function index_to_xy(index) {
let p = index / 4;
let x = p % cam.width;
let y = Math.floor(p / cam.width);
return { x, y };
}
function mousePressed() {
noLoop();
}
my algorithm works decently, because it chunks vertices together.

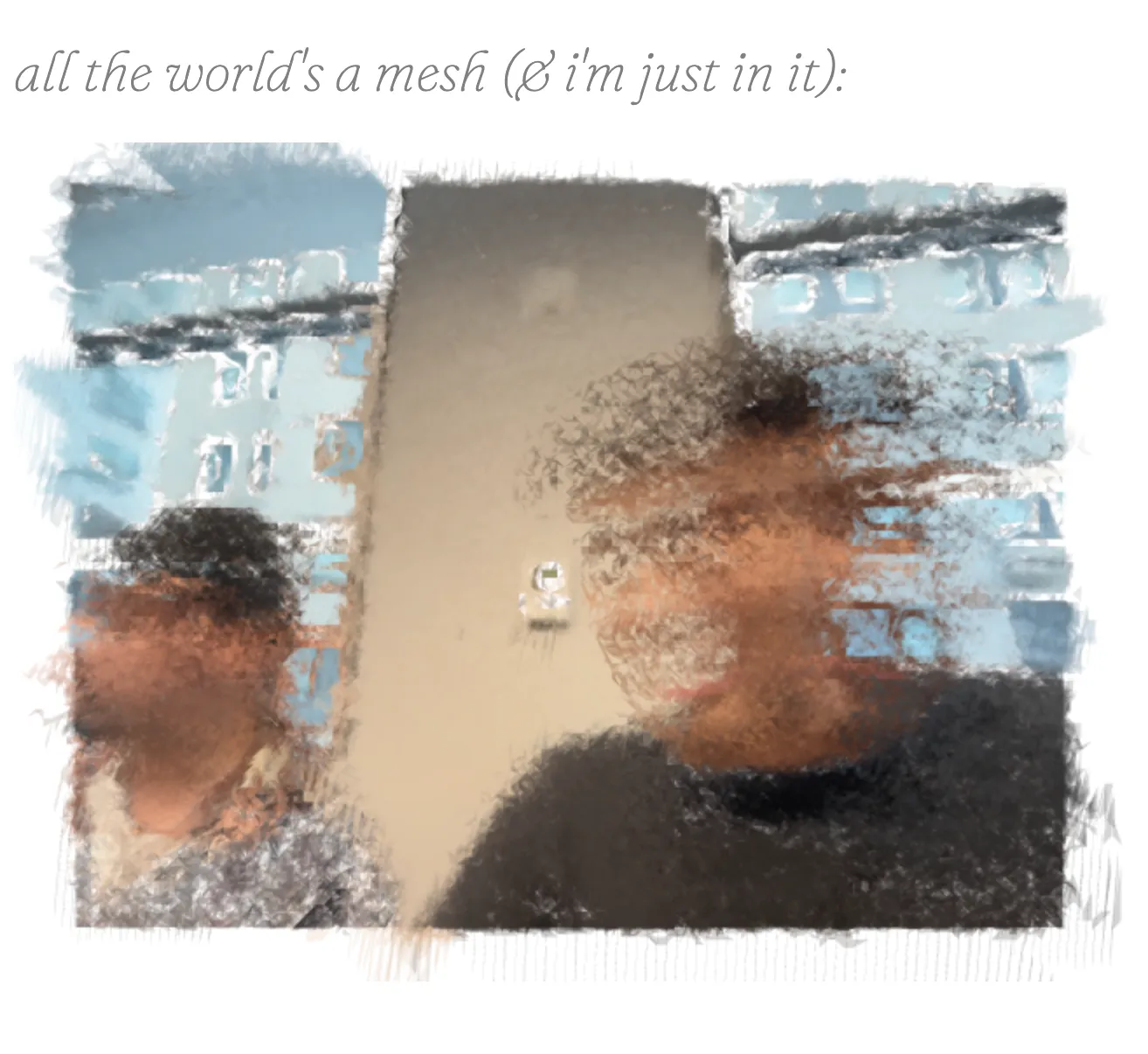

achieved a cool gouache sort of sketch.
//untitled; arjun; month, 2026.
/*
ask:
make a reactive mesh, with vertices that use the z-parameter. use position & colour.
*/
/*
thought:
*/
let cam;
let pixelation = 5;
let similarity_threshold = 1;
function setup() {
cam = createCapture(VIDEO, { flipped: true }, make_canvas);
pixelDensity(1);
cam.hide();
}
//make canvas the same size as camera for easier calculations.
function make_canvas() {
createCanvas(cam.width, cam.height, WEBGL);
}
function draw() {
// background (255);
//for testing video feed.
push();
translate(-width / 2, -height / 2);
//webgl renders canvas from the center of the screen; so.
// tint (100, 50);
// image(cam, 0, 0, width, height);
pop();
if (frameCount % 1 == 0) {
make_groups();
}
tint(255, 255);
draw_groups();
}
//this function will read all colour values, cluster similar colours together into a group.
// we keep two variables:
let groups = []; //stores data in the format: groups[id][indices], where id increments sequentially, and indices is a list of all cam.pixels indices that belong to the group.
let pixel_to_group; //this stores data in this format: studied_index: groupid. we use this to check if the pixel being studied has been grouped or not.
function make_groups() {
cam.loadPixels();
//^ returns a cam.pixels array with rgba information.
// reset every frame
groups = [];
pixel_to_group = {};
// go through every single pixel and compare its colour value with its neighbour.
for (let x = 0; x < cam.width; x += pixelation) {
for (let y = 0; y < cam.height; y += pixelation) {
// this is the studied pixel. we get its values first.
let studied_index = get_pixel_index(x, y);
let studied_rgba = color(cam.pixels[studied_index], cam.pixels[studied_index + 1], cam.pixels[studied_index + 2], cam.pixels[studied_index + 3]);
let studied_hue = Math.floor(hue(studied_rgba));
// now we have the hue of the pixel being looked at. we now want to compare it to its neighbours.
let neighbours = get_neighbours(x, y);
// ^ returns an array of indices for cam.pixels.
// this will store the group id if we find a matching neighbour.
let found_group = null;
// now we compare the studied hue to neighbour_hue.
for (let i = 0; i < neighbours.length; i++) {
let neighbour_index = neighbours[i];
// we see if the neighbour has been grouped before. if not, we skip through this neighbour business, so that the current pixel can get its own group.
if (pixel_to_group[neighbour_index] === undefined) {
continue;
}
// a group near the neighbour being studied exists, which means we can group it to that group.
//get its colour. we compare hue.
let neighbour_rgba = color(cam.pixels[neighbour_index], cam.pixels[neighbour_index + 1], cam.pixels[neighbour_index + 2], cam.pixels[neighbour_index + 3]);
let neighbour_hue = Math.floor(hue(neighbour_rgba));
// we use abs to get rid of writing if > and if <. abs maps it to a number line.
if (abs(neighbour_hue - studied_hue) < similarity_threshold) {
// this is a valid colour to be grouped.
found_group = pixel_to_group[neighbour_index];
break;
}
}
// if no neighbour matched, create a new group
if (found_group === null) {
let new_group_id = groups.length;
groups.push([studied_index]);
pixel_to_group[studied_index] = new_group_id;
}
// otherwise, add this pixel to an existing group, if found.
else {
groups[found_group].push(studied_index);
pixel_to_group[studied_index] = found_group;
}
}
}
}
//this one tries to take some dynamic decisions to make either a triangle or triangle strip topology.
function draw_groups() {
push();
// since webgl draws from the center of the screen:
translate(-width / 2, -height / 2);
//coloring stuff; remains global across meshes:
colorMode(RGB, 255);
noStroke();
// we want to draw a mesh for every single group.
for (let n = 0; n < groups.length; n++) {
if (groups[n].length < 3) continue; //skip these groups, because they're too small to be a mesh.
// z transformations:
let max_group_length = Math.max(...groups.map((g) => g.length));
const max_z_depth = 50;
const min_z_depth = -50;
// now we decide the topology.
//if it is divisible by 3, we form a triangle-strip.
if (groups[n].length % 3 === 0) {
push();
let z = map(groups[n].length, 3, max_group_length, min_z_depth, max_z_depth);
translate(0, 0, z);
beginShape(TRIANGLES);
for (let i = 0; i < groups[n].length; i++) {
let index = groups[n][i];
let { x, y } = index_to_xy(index);
let r = cam.pixels[index];
let g = cam.pixels[index + 1];
let b = cam.pixels[index + 2];
stroke (r,g,b,255);
strokeWeight (20);
fill(r, g, b, 50);
vertex(x, y, 0);
}
endShape();
pop();
} else {
push();
let z = map(groups[n].length, 0, max_group_length, min_z_depth, max_z_depth);
translate(0, 0, z);
beginShape(TRIANGLE_STRIP);
for (let i = 0; i < groups[n].length; i++) {
let index = groups[n][i];
let { x, y } = index_to_xy(index);
let r = cam.pixels[index];
let g = cam.pixels[index + 1];
let b = cam.pixels[index + 2];
let z = map(n, 0, max_group_length, min_z_depth, max_z_depth);
stroke(r, g, b, 255);
strokeWeight(20);
fill(r, g, b, 50);
vertex(x, y, 0);
}
endShape();
pop();
}
}
pop();
}
// // this one just draws triangle-strip meshes.
// function draw_groups() {
// push();
// // since webgl draws from the center of the screen:
// translate(-width / 2, -height / 2);
// colorMode(RGB, 255);
// noFill();
// // we want to draw a mesh for every single group.
// for (let n = 0; n < groups.length; n++) {
// if (groups[n].length < 4) continue; //skip these groups, because they're too small to be a mesh.
// beginShape(TRIANGLE_STRIP);
// for (let i = 0; i < groups[n].length; i++) {
// let index = groups[n][i];
// let { x, y } = index_to_xy(index);
// let r = cam.pixels[index];
// let g = cam.pixels[index + 1];
// let b = cam.pixels[index + 2];
// let z = 0;
// // stroke(r, g, b);
// // strokeWeight(pixelation);
// // point(x, y, 1);
// noStroke();
// fill(r, g, b);
// vertex(x, y, z);
// }
// endShape();
// }
// }
/* helpers: */
//helper written by an llm to fetch neighbours for a given pixel, taking in mind the pixelation value.
function get_neighbours(x, y) {
let neighbours = [];
// Check all 8 surrounding positions (or fewer at edges)
for (let dx = -pixelation; dx <= pixelation; dx += pixelation) {
for (let dy = -pixelation; dy <= pixelation; dy += pixelation) {
// Skip the center pixel itself
if (dx === 0 && dy === 0) continue;
let nx = x + dx;
let ny = y + dy;
// Check bounds
if (nx >= 0 && nx < cam.width && ny >= 0 && ny < cam.height) {
let index = get_pixel_index(nx, ny);
neighbours.push(index); // just return the index of the neighbours.
}
}
}
return neighbours;
}
//helper to convert x,y coordinates to pixels index.
function get_pixel_index(x, y) {
return (y * cam.width + x) * 4;
}
//helper to convert index to coordinates.
function index_to_xy(index) {
let p = index / 4;
let x = p % cam.width;
let y = Math.floor(p / cam.width);
return { x, y };
}
//for debugging:
// function mousePressed() {
// noLoop();
// }
