- capacitor just stores. there is no current flow between terminals.
- time to charge a capacitor is determined by the rc time constant:
t = r*c.

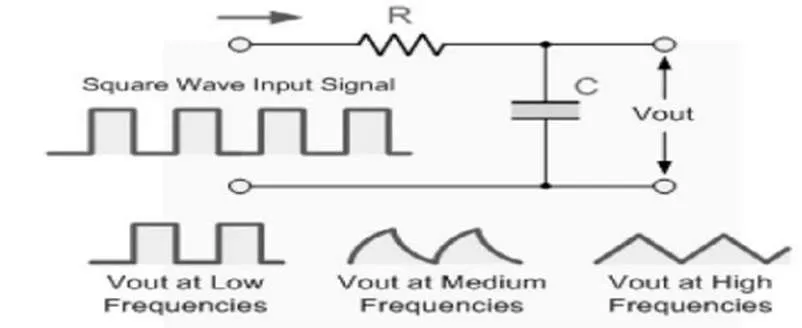

looked at rc integrator circuits:
and rc differentiator circuits.
briefly spoke about semiconductors.
spoke about diodes having forward or reverse biasing.

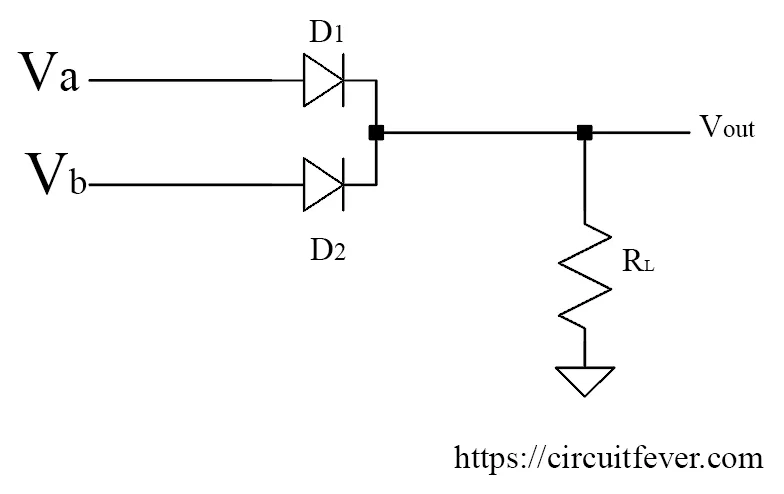

looked at and & or gates made with diodes.
an example would be a power block diode circuit.
only when anode > cathode, current flows.
when led is forward biased, photons get fired.
flat side in led is cathode.

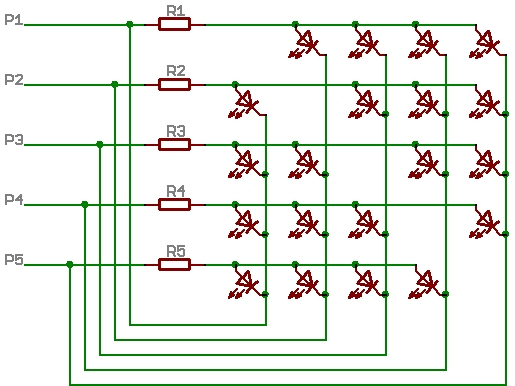

spoke about multiplexing and charlieplexing.
arrow always points towards the n gate in a transistor.

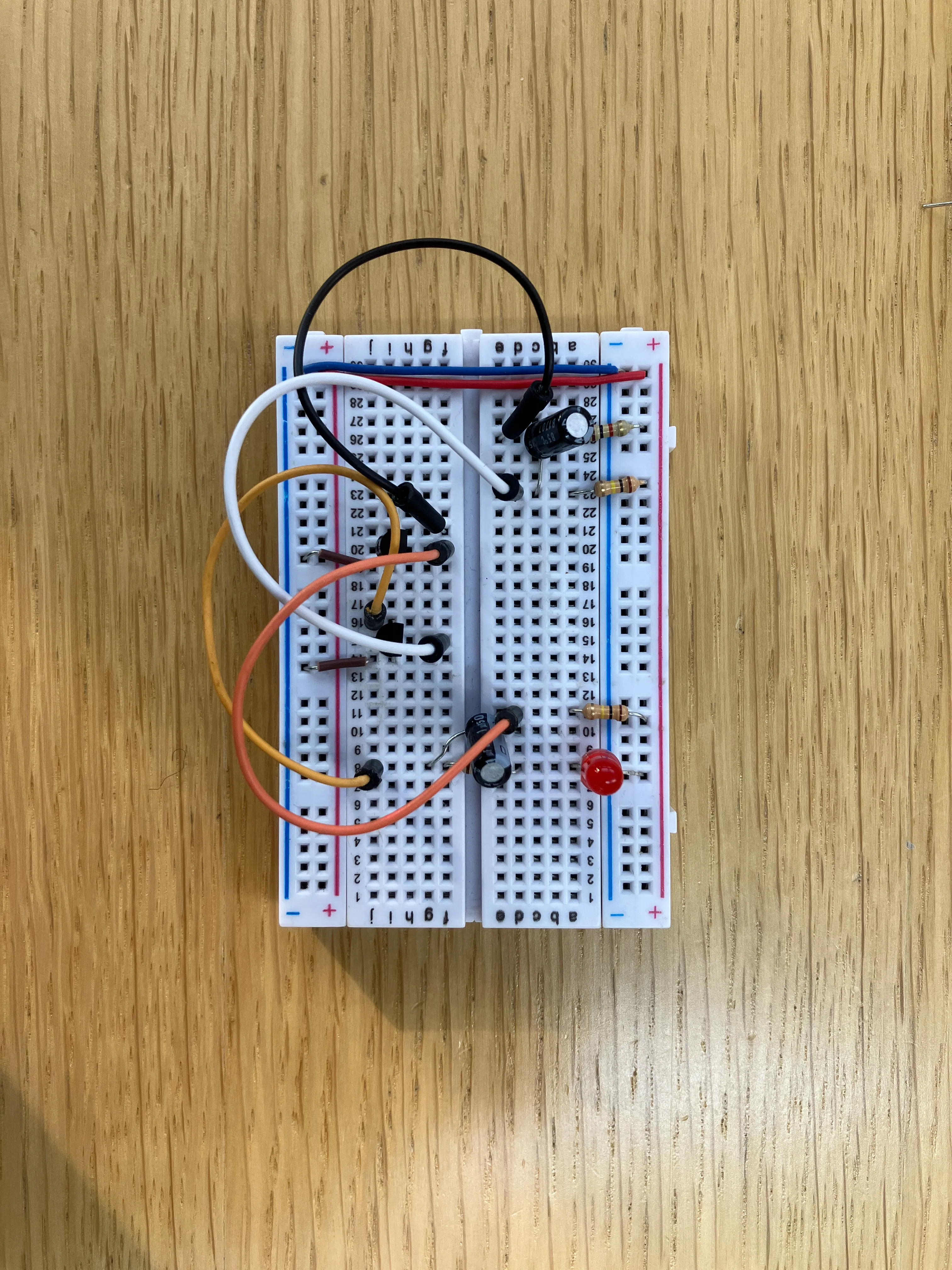

made these:
second one felt a little bit useless. you could just complete the circuit yourself (conducting electricity through the body).
also realized that it’s easier to see circuits in a vertical flow of components.
