build with prisha.
261013:

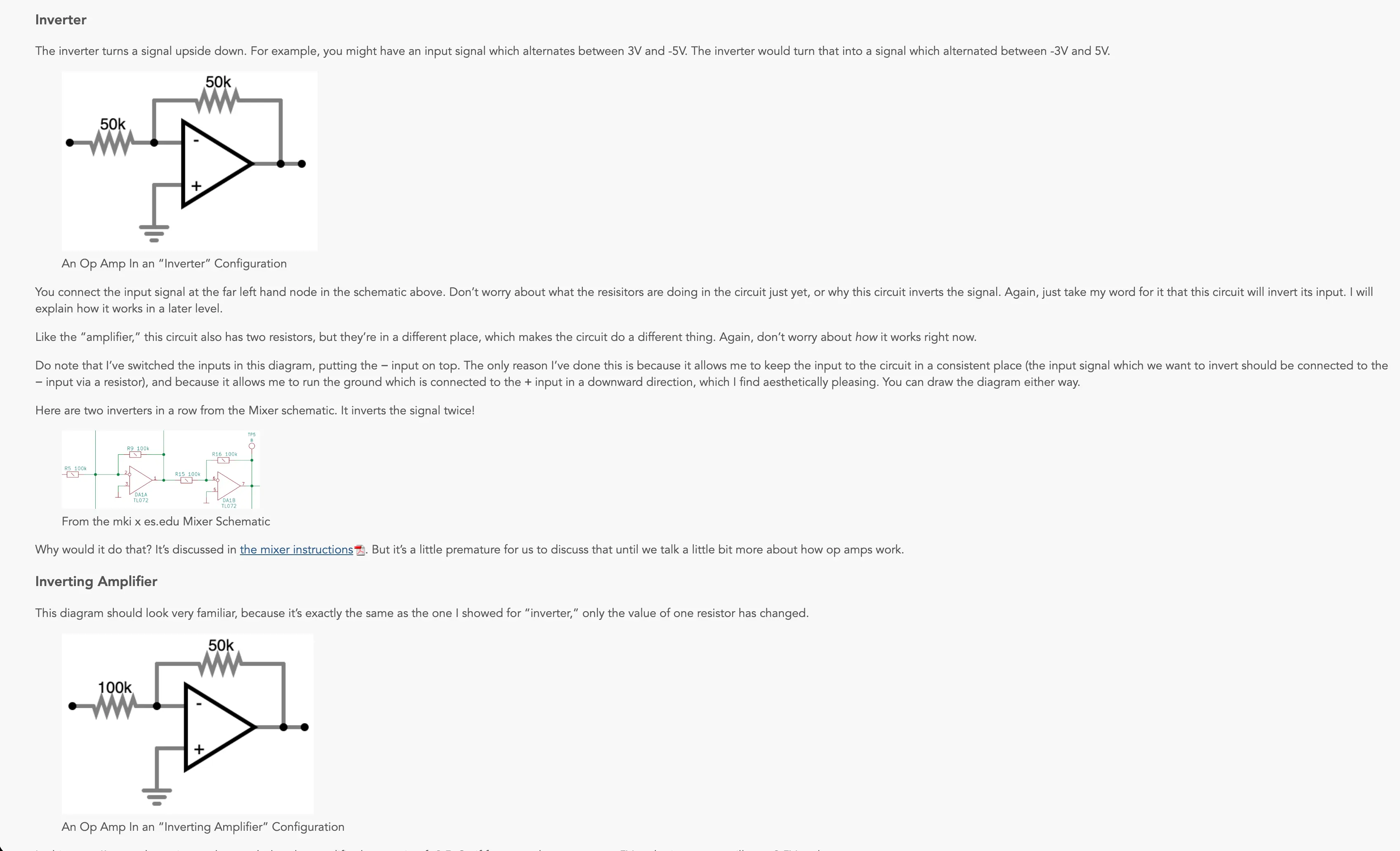

inverter using an op-amp:
261015:
from Design of op amp sine wave oscillators, By Ron Mancini:
Oscillation results from an unstable state; i.e., the feed- back system can’t find a stable state because its transfer function can’t be satisfied. Equation 1 becomes unstable when (1+Aβ) = 0 because A/0 is an undefined state. Thus, the key to designing an oscillator is to insure that Aβ = –1 (called the Barkhausen criterion), or using complex math the equivalent expression is Aβ = 1∠–180°.
another explainer: https://www.youtube.com/watch?v=gbUXbaxvX94

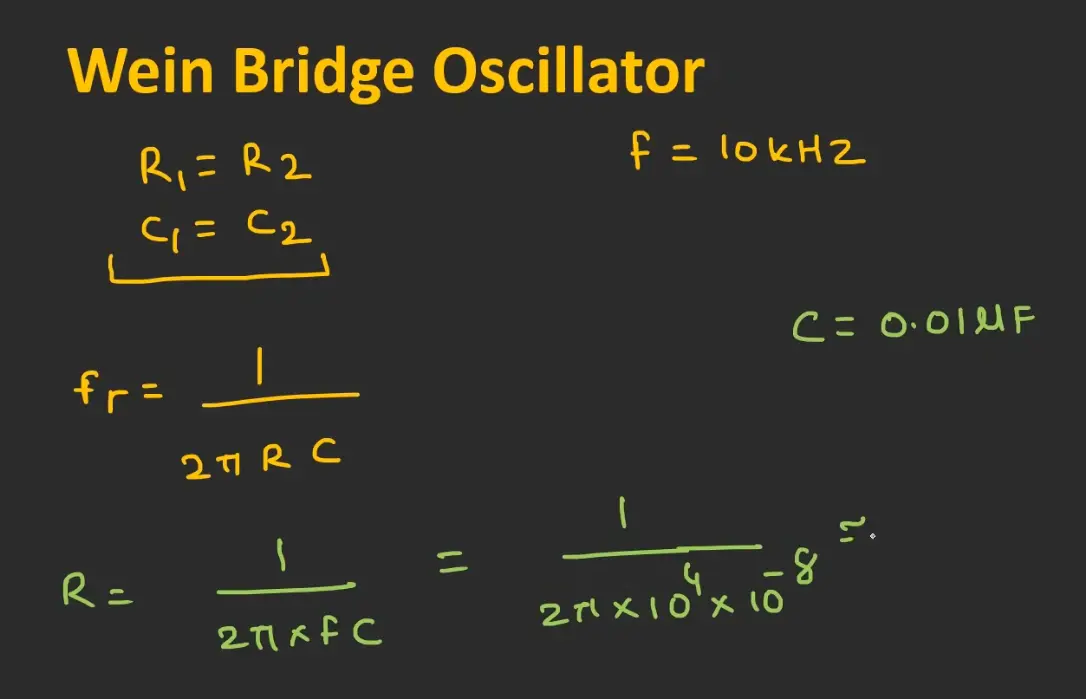

wein bridge oscillator frequency calculation:

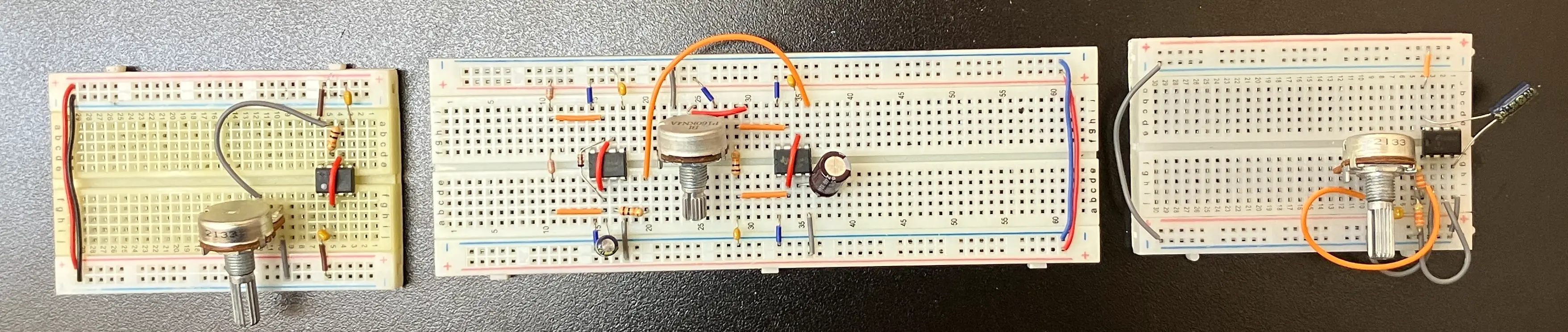

made three oscillators:
261027:
chaining 555-s together:
atari punk circuit:
source: https://electroidiot.com/idiots-guide-to-the-555-timer-ic/#chaining-555-timers
261031:
jam -1:
261110:
did some adventurous re-soldering of all joins on the panel.
